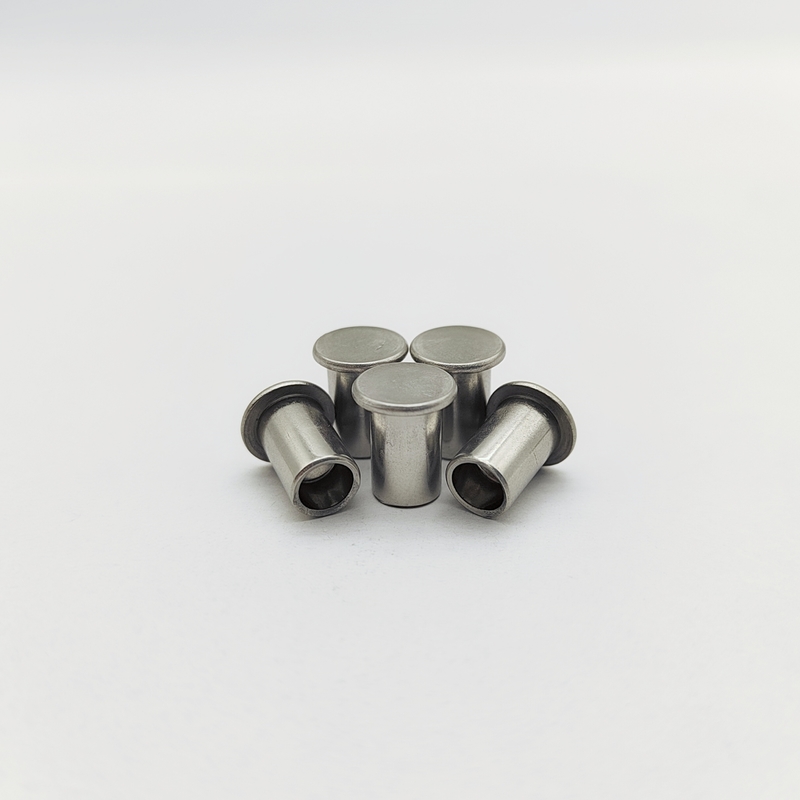

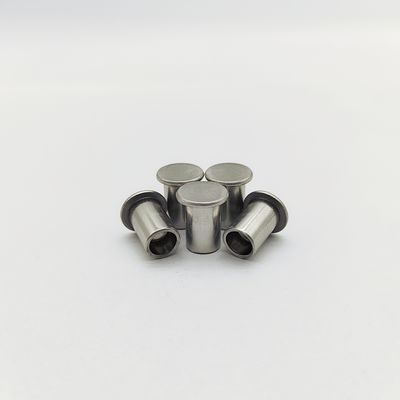

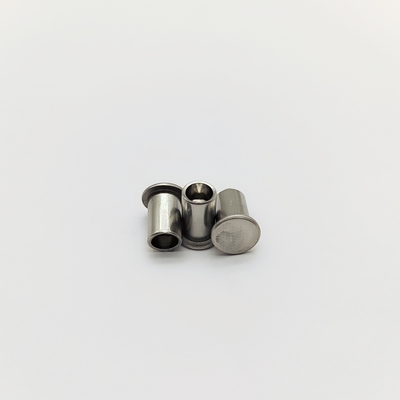

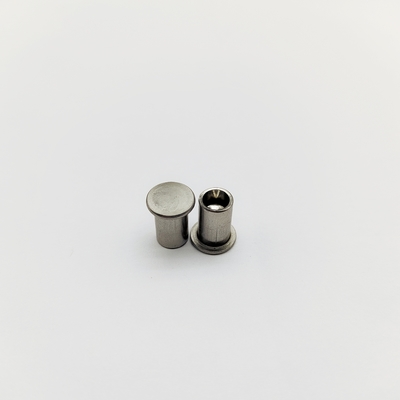

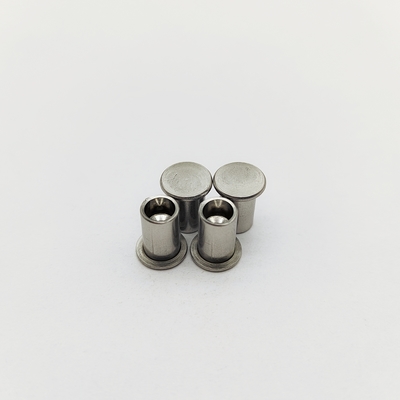

316L Stainless Steel Flat Head Semi-Tubular Rivets ISO 15977
Produktdetails:
| Herkunftsort: | China |
| Markenname: | guanbiao |
| Zertifizierung: | ISO9001 |
| Modellnummer: | Anpassbar |
Zahlung und Versand AGB:
| Min Bestellmenge: | 50000 |
|---|---|
| Preis: | negotiable |
| Verpackung Informationen: | Plastiktüte + Karton + Palette |
| Lieferzeit: | 15-20 Arbeitstage |
| Zahlungsbedingungen: | T/t |
| Versorgungsmaterial-Fähigkeit: | 5000000 |
|
Detailinformationen |
|||
| Produktanwendung: | Elektronik -Chassis -Baugruppe | Kopfstil: | Wohnung |
|---|---|---|---|
| Faden: | NEIN | Vorlaufzeit: | 15 ~ 20 Arbeitstage |
| Finsh: | Passivierung (mattgrau) | Installationsmethode: | Spannend |
| Material: | Edelstahl | Tolerant: | +/- 0,05 mm |
| Dimension: | Wir können Ihre Dimension anpassen | Scherfestigkeit: | M6: 3.200n (ISO 15998) |
| Hervorheben: | 316L stainless steel flat head rivets,ISO 15977 semi tubular rivets,stainless steel rivets with warranty |
||
Produkt-Beschreibung
316L Flat Head Semi-Tubular Rivets - Medical/Marine Grade - Electropolished - ISO 15977 - Ø2mm To Ø5mm
| Attribute | Value |
|---|---|
| Product Application | Electronics chassis assembly |
| Head Style | Flat |
| Thread | No |
| Lead Time | 15~20 working days |
| Finish | Passivation (Matte Grey) |
| Installation Method | Riveting |
| Material | Stainless Steel |
| Tolerance | +/- 0.05mm |
| Dimension | We Can Customise to your dimension |
| Shear Strength | M6: 3,200N (ISO 15998) |
High-Precision Semi-Tubular Rivets for Harsh Environments
These medical/marine grade semi-tubular rivets are precision-machined from A4-80 stainless steel (316L) with electropolished finish (Ra<0.2µm). Featuring ±0.03mm diameter tolerance and controlled hollow depth, they deliver consistent performance in surgical instruments, marine hardware, and food processing equipment.
Technical Specifications
Head Type: 100° Flat Head (ISO 15977)
Head Diameter (D): Ø3.2mm (Ø2mm), Ø6.0mm (Ø4mm)
Total Length (L): 4-15mm (e.g., Ø3mm: 5/6/8/10/12mm)
Hollow Depth (H): 1.2-1.8×d (Customizable)
Hole Diameter (d): Ø1.2mm (Ø2mm), Ø2.0mm (Ø4mm)
Material: 4-80 Stainless Steel (316L)
Surface Treatment: Passivation + Electropolishing (Ra 0.1-0.2µm)
Diameter Tolerance: ±0.03mm
Customization: Bio-compatible coatings, laser marking
Primary Uses & Applications
- Surgical instrument assembly
- Marine deck fittings
- Pharmaceutical packaging machines
- Desalination plant equipment
- Dairy processing conveyors
Installation Instructions
- Ultrasonic clean rivets before installation.
- Use precision micro-riveter with force control.
- Set compression force:
- Ø3mm: 150-200N
- Ø5mm: 400-500N
- Inspect under 10x magnification for flush seating.
